The Piedmont Gravel Build Kit


Retail Price: 3295

Say hey to your new Thomson Titanium Piedmont gravel bike frame set. Pick and choose from our entire suite of Thomson components to create the ultimate frame set and cock pit.

Base model comes with our Elite series stem, seatpost, collar, alloy bar, Cane Creek Headset, and Columbus Cross Futura Plus Fork; or enjoy a sweet discount on our premium components (Ti, Carbon, Masterpiece, Dropper) for the ultimate Thomson package deal.


Cyclist with a helmet and his bike at a mountain terrain.

Say hey to our titanium gravel frame set, an homage to the diverse Georgian terrain. From the fall line, to the red clay of middle Georgia, through the plateaus and up to the foothills of the Blue Ridge Mountains, this is Thomson’s rugged outdoor paradise.

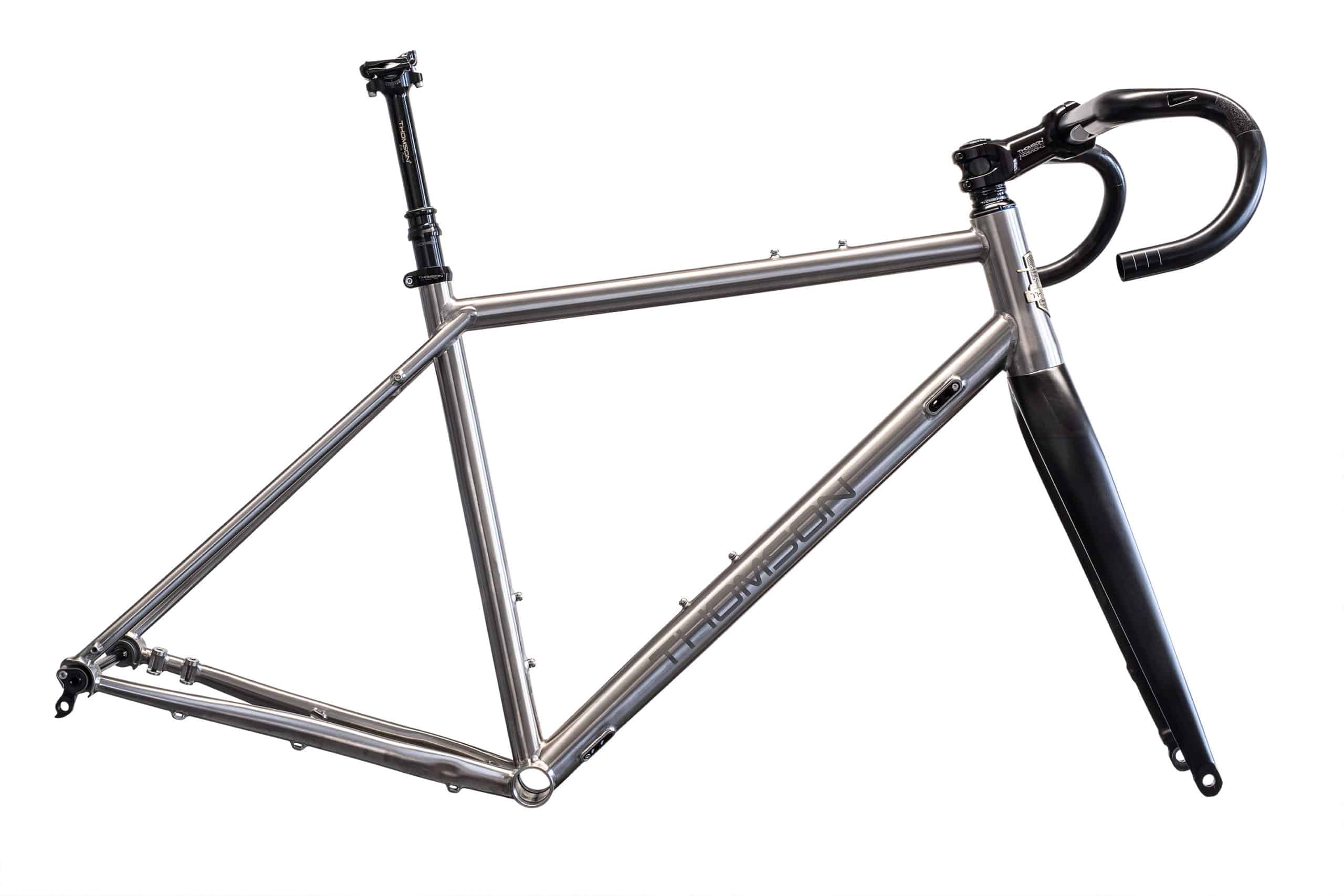

The Piedmont is our namesake, a hand crafted 3al 2.5v aircraft grade custom drawn Titanium frame set. It’s designed to have a slack 70 degree head tube making it both smooth and fast on the flats, then ready to rock when the terrain goes up.

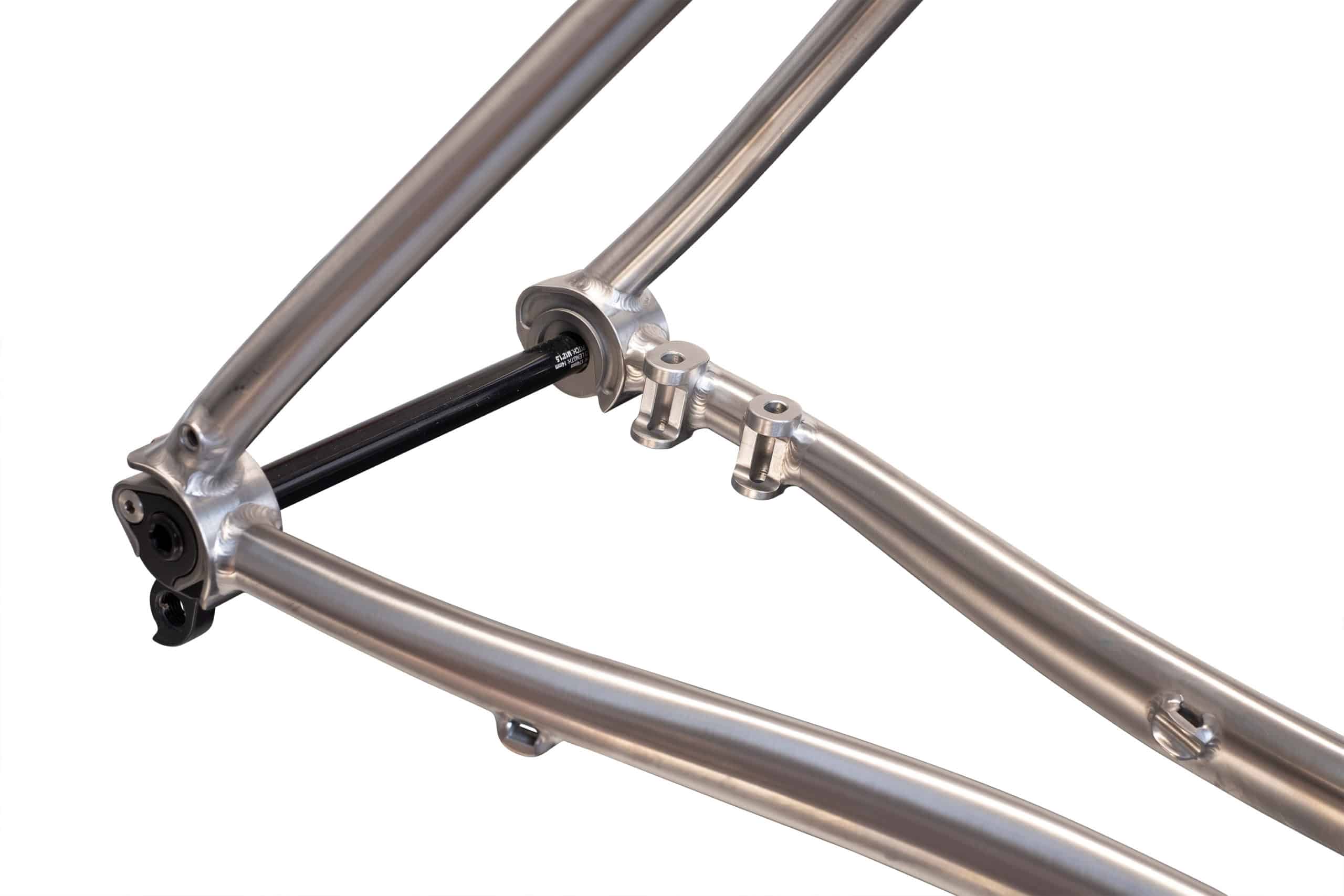

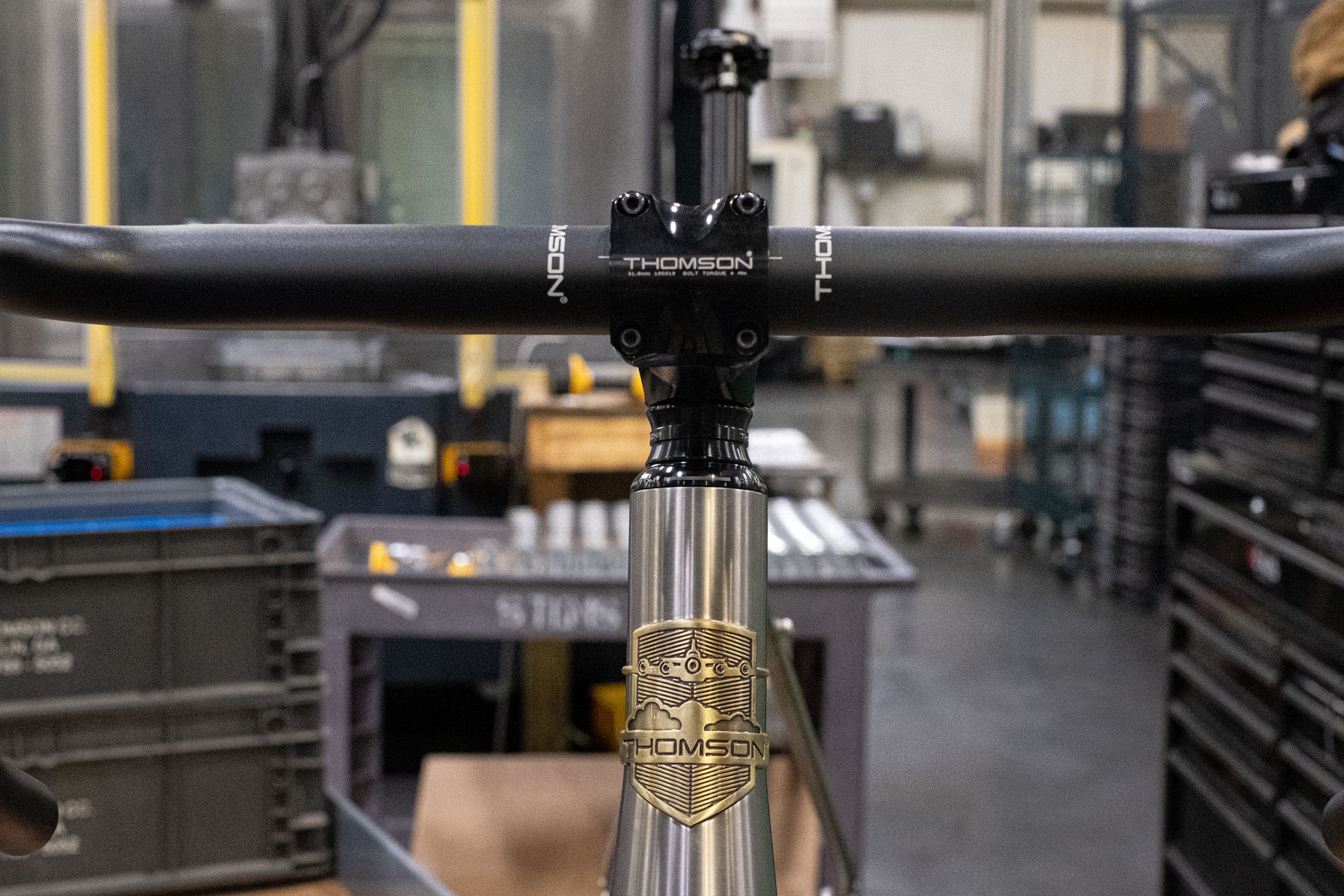

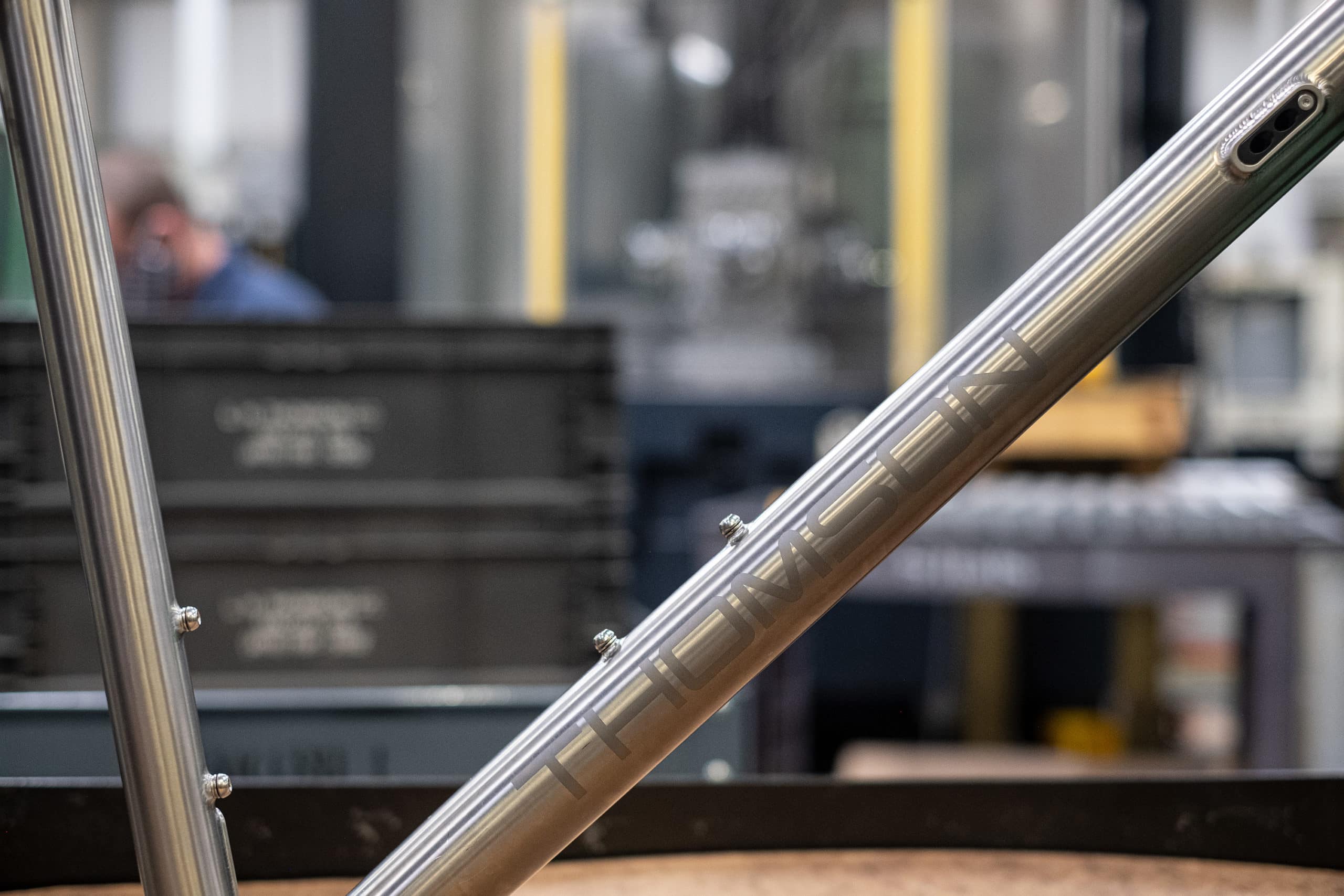

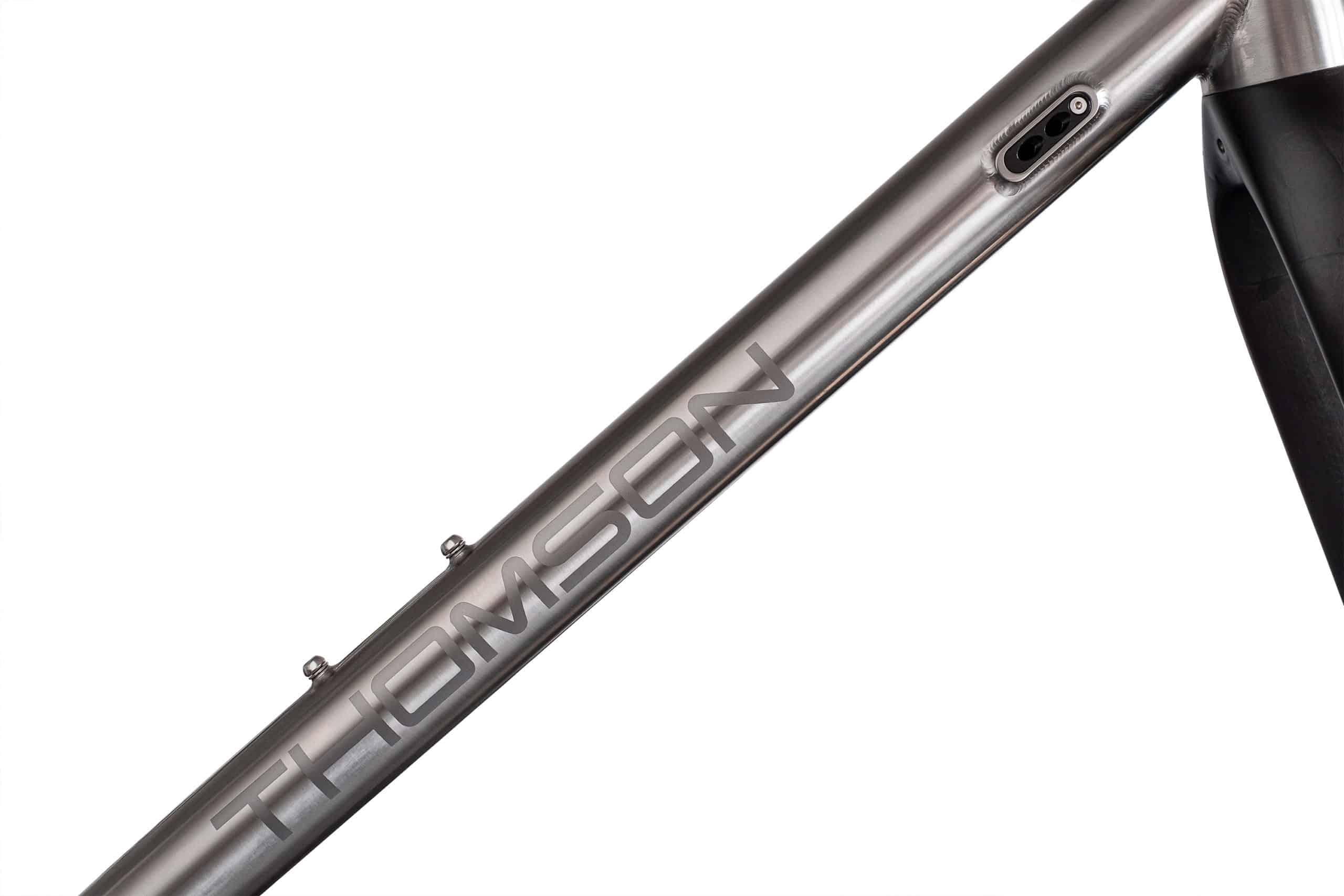

Details include 44c tire clearance, tapered 1 1/8th to 1.5 internal head set, internal routing, 142×12 through axle, 27.2 post, brushed finish with Sandblasted logos and a custom head tube badge.

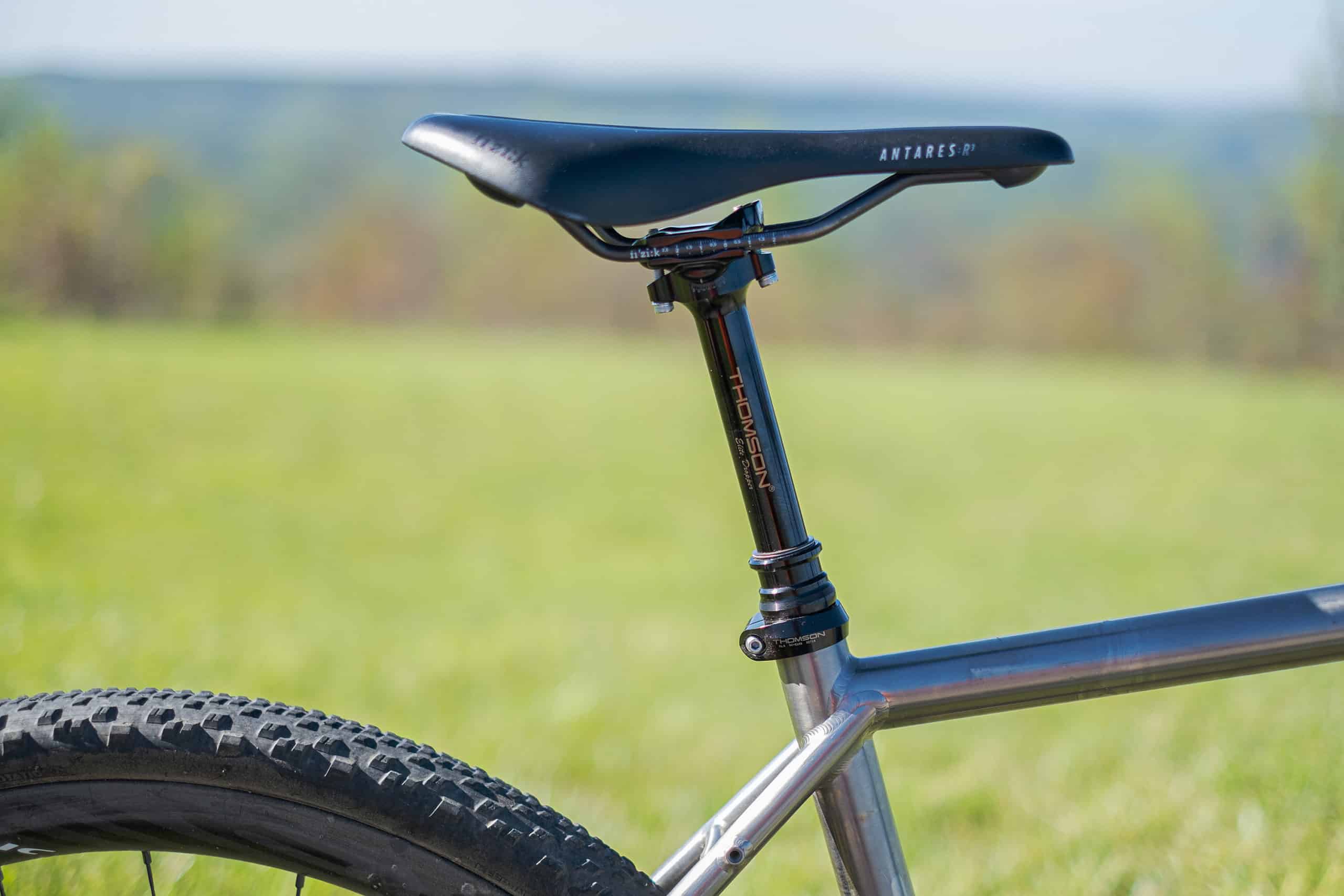

Frame sets come equipped with a Columbus Futura Cross Plus Fork, Cane Creek headset, and a full Thomson cockpit of your choice, dial it in and make it yours. From our Elite series, Masterpiece, Ti, carbon fiber or droppers, pick and choose from all of your favorite Thomson components, for the ultimate build kit.

The Piedmont is handmade in Taiwan. We partner with titanium specialists who also produce our collection of Ti posts and handlebars.

Catch the limited pre book of the Piedmont, frame sets/parts drop ship February 2021.

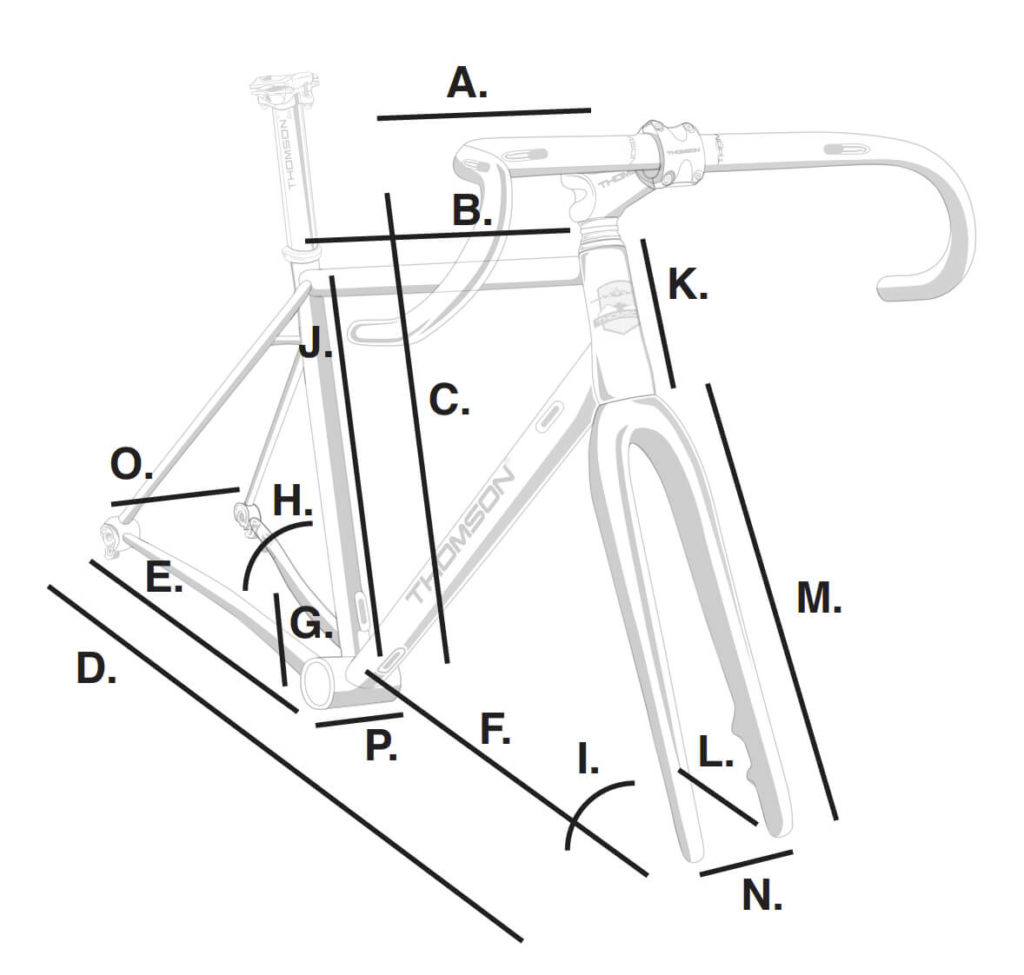

REACH 374mm 380mm 384mm 397mm 410mm
TOP TUBE LENGTH 522mm 532mm 546mm 567mm 587mm
STACK 515mm 531mm 566mm 593mm 618mm
WHEELBASE 1006mm 1018mm 1035mm 1058mm 1079mm
CHAINSTAY LENGTH 428mm 428mm 428mm 428mm 428mm
FRONT CENTER 588mm 599mm 616mm 639mm 661mm
BB DROP 70mm 70mm 70mm 70mm 70mm
SEAT TUBE ANGLE 74? 74? 74? 74? 74?
HEAD TUBE ANGLE 70? 70? 70? 70? 70?
SEAT TUBE LENGTH 401mm 451mm 491mm 511mm 511mm
HEAD TUBE LENGTH 97mm 114mm 151mm 180mm 206mm
FORK RAKE 45mm 45mm 45mm 45mm 45mm
FORK ATC 395mm 395mm 395mm 395mm 395mm
